Genuine Sinotruk MT13 Natural Gas Engine Turbocharger | HE500WG Series - Part No. 202V09100-7828 / 5328717

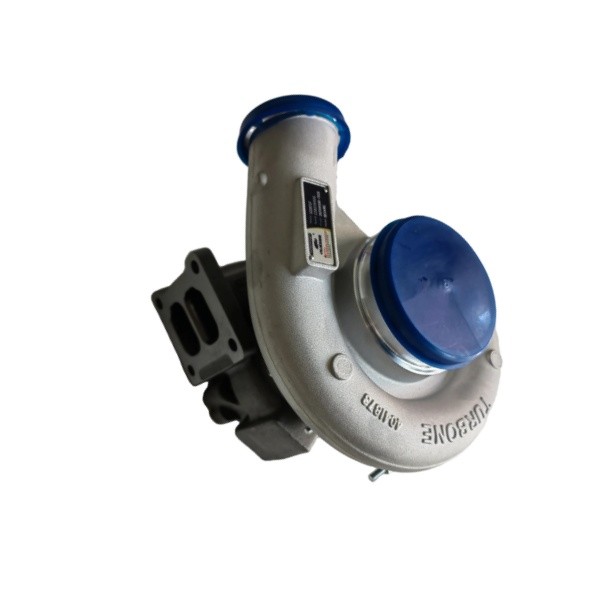

This HE500WG turbocharger (Part No. 202V09100-7828) is an authentic Sinotruk component specifically engineered for the MT13 MAN-technology series.

Technical Specifications:
Part Number: 202V09100-7828 (Sinotruk OEM)
Cross-Reference: 5328717 / HE500WG
Engine Compatibility: Sinotruk MT13 Series (Natural Gas / CNG / LNG)
Application: HOWO T7H, SITRAK C7H, Heavy-Duty Trucks
Cooling Type: Water-cooled and Oil-lubricated for maximum heat dissipation
Housing Material: High-Silicon Molybdenum Ductile Iron (for thermal stability)
Turbo Model: HE500WG (Wastegate technology)

Installation Notes

1. Pre-Installation Oil Priming: Before connecting the oil feed line, fill the turbocharger oil inlet with clean engine oil and rotate the impeller by hand. This ensures the bearings are lubricated the moment the engine fires.
2. Inspect the Intake System: Check the intercooler and air filter housing for any debris from the previous turbo failure. Even a tiny metal fragment will destroy the new impeller.
3. Check Oil Feed & Drain Lines: Ensure the oil lines are not restricted or carbonized. A blocked drain line will cause oil to leak through the turbo seals.
4. Replace Filters: Always install a new air filter and engine oil filter when replacing a turbocharger to maintain the purity of the lubrication system.
5. Leak Test: After installation, run the engine at idle for 3-5 minutes. Inspect all gaskets and connections for air or oil leaks before operating under load.
