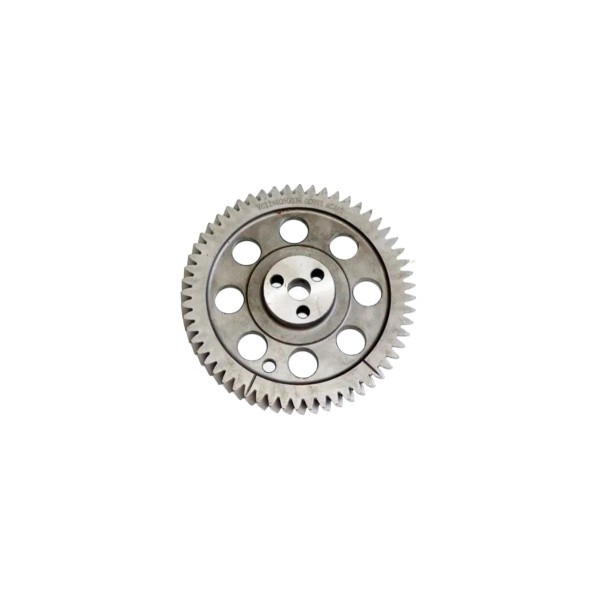

Sinotruk Genuine VG1246050036 Camshaft Gear (Sintered Alloy, For D12 Engine Timing System)
Technical Specifications:
-
Material:
-
Fe-Cu-Mo sintered alloy (Density ≥7.1g/cm³)
-
Induction-hardened teeth (HRC 60-64)
-
Dimensions:
-
128mm OD, 38 teeth (20° helix angle)
-
Keyway width: 12±0.01mm
-
Performance:
-
Max RPM: 3,200 (ISO 1940 G6.3 balance)
-
Wear rate: <0.003mm/10,000hrs
-
Compatibility:
-
Sinotruk D12 Euro V Engines
-
Replaces #ZZ9107010088
Installation Notes:
-
Timing Alignment:
-
Match laser dots on crank/cam gears within ±1°
-
Use dial gauge to verify cam lobe position
-
Bolt Preload:
-
110Nm + 30° angle tightening (lubricate threads)
-
Run-In:
-
Maintain 1,500-2,000rpm for 20 minutes initially
