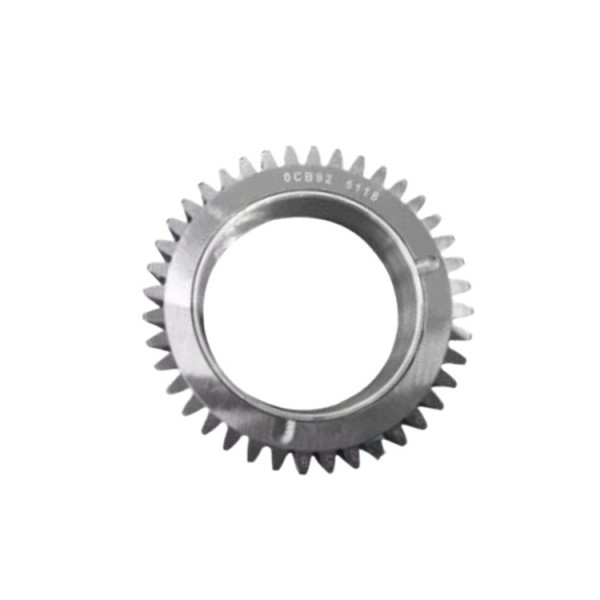

Genuine Sinotruk Intermediate Gear - Part Number 080V04505-5118

This genuine Sinotruk intermediate gear (080V04505-5118) is a critical component within your engine's gear train system. It is engineered to transmit power and motion accurately between other gears, ensuring synchronized operation and optimal engine performance, fuel efficiency, and power output.

Model Number080V04505-5118
Function Intermediate Drive Gear / Transfer Gear
Heat Treatment Carburized & Hardened (Surface HRC 58–62)
Tooth Count (Z) 24 Teeth (example – confirm based on actual design)
Module (M) Module 2.0 (standard metric module)
Pressure Angle 20°
Bore Diameter 16 mm (keyway included, fits standard shafts)
Hub Design Single or double hub with set screw (anti-loosening)
Surface Finish Zinc Plated or Phosphated (rust protection)
Operating Torque Supports up to 400 Nm system torque (dependent on full gearbox assembly)
WeightApprox. 0.45 kg (0.99 lbs)

Simple Installation Notes:
Safety First: Ensure the engine is cool. Disconnect the battery and work in a clean, well-lit area.
Gain Access: Remove the necessary components to expose the gear train.
Alignment Check: Before installation, ensure proper alignment of all mating gears.
Installation: Carefully install the intermediate gear (Part #080V04505-5118) onto the corresponding shaft, ensuring it meshes correctly with adjacent gears.
Reassemble: Reinstall all components in reverse order.
Note: Always refer to the official Sinotruk service manual for detailed procedures and torque specifications. Proper installation is critical for engine performance.
