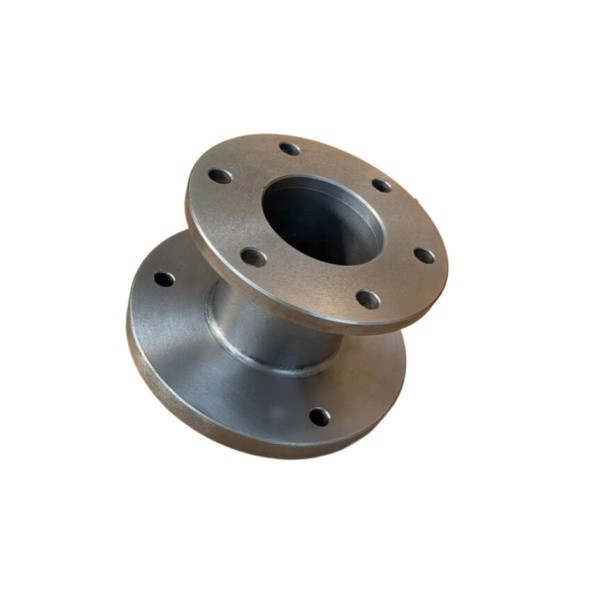

VG1246060046B Genuine SINOTRUK Intermediate Flange - Transmission Mounting Part for HOWO Trucks

VG1246060046B Intermediate Flange – SINOTRUK OEM Transmission Component‌

‌The Critical Link Between Gearbox and Drivetrain‌
This ‌genuine SINOTRUK intermediate flange‌ (Part# VG1246060046B) ensures precise alignment and torque transfer in HOWO T7H, G3, and other 6×4 truck models (2020+). Manufactured to original blueprints, it eliminates vibration issues caused by aftermarket mismatches.

‌Key Features‌

• ‌Material‌: High-grade cast steel (QT500-7) with anti-corrosion coating
• ‌Bolt Pattern‌: 6x M12 holes (120mm PCD) for secure mounting
• ‌Surface Finish‌: Machined to Ra 3.2μm for optimal gasket contact
• ‌Load Capacity‌: Rated for 850 N·m dynamic torque

• Technical Specifications‌

  Parameter	Value
  Outer Diameter	210mm (±0.5mm)
  Center Bore	78mm (H7 tolerance)
  Thickness	25mm
  Weight	3.2kg
  Operating Temp	-40°C to +150°C

  ‌Why Choose OEM?‌
  ✔ Direct replacement – no machining adjustments needed
  ✔ 100% interchangeability with SINOTRUK part# VG1246060046B
  ✔ Includes pre-installed alignment dowels (2x Ø10mm)
  ✔ Batch-tested for runout (<0.1mm TIR)

  ‌Compatibility‌: Also fits some Shacman X3000 models with SINOTRUK-sourced transmissions.

  ‌Package Includes‌:

  • 1x Intermediate flange (VG1246060046B)
  • Installation guide with torque specs (85±5 N·m)
  • 3-year material warranty
