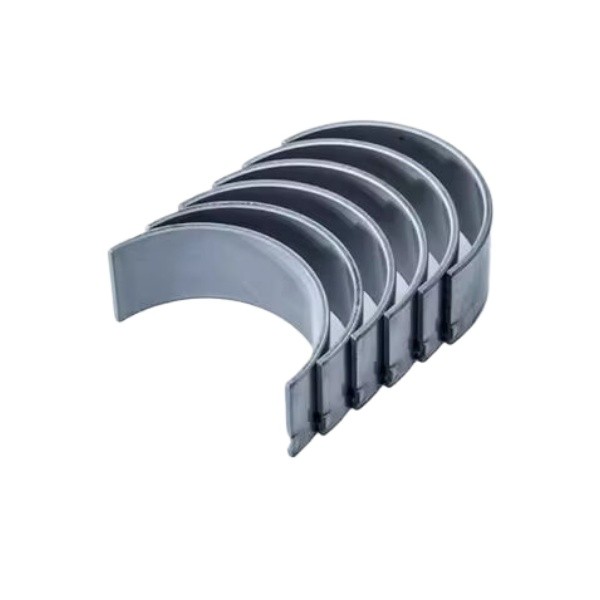

Genuine Sinotruk lower connecting rod bush for high-mileage engine rebuilds. Direct replacement for OEM# ZZ4105010007.
Technical Specifications:
-
Material: Lead-free bronze alloy (CuAl10Fe5Ni5) with embedded graphite slots
-
Dimensions: 45mm OD × 40mm ID × 32mm Width (±0.03mm precision)
-
Surface Finish: Diamond-turned (Ra 0.8μm) for optimal oil retention
-
Load Rating: 50MPa dynamic / 110MPa static (SAE J1995 standard)
-
Compatibility:
-
Sinotruk HOWO D12 Engine (2016+)
-
WD615 Euro III/V variants
-
Replaces obsolete part# HG405012001
Installation Notes:
-
Pre-fit Check: Verify bush-to-rod clearance (0.05-0.08mm) with plastigauge
-
Press Tooling: Use mandrel with 45° chamfer to prevent edge deformation
-
Post-Installation: Run engine at 1,500rpm for 20 minutes to seat bush
