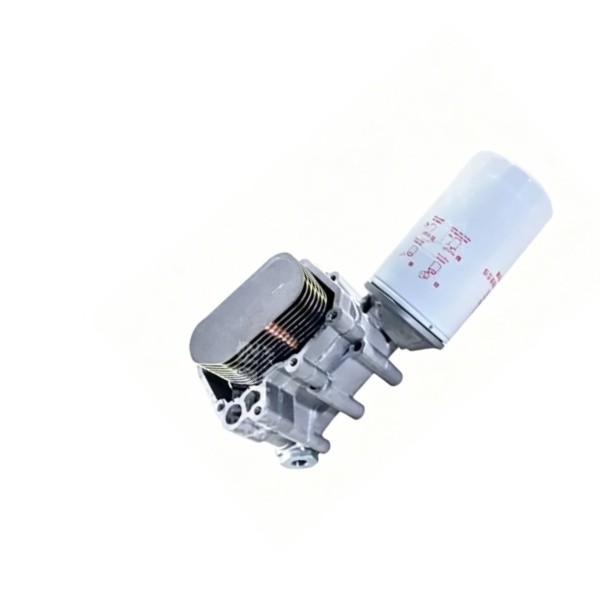

The 082V05000-7200 Engine Oil Module is the oil cooling and filtration assembly that keeps Sinotruk's MT07 and MC07 engines alive under real working conditions. This isn't a decorative cover or a simple bracket — it's a pressure-tested, heat-cycled component that sits at the heart of the engine's lubrication system, and when it fails, the consequences go from annoying to catastrophic in a matter of miles.
| Specification | Value |
|---|---|
| Part Number | 082V05000-7200 |
| Product Name | Engine Oil Module (Oil Cooler & Filter Assembly) |
| Alternate Description | Oil Module (Head Facing Down) |
| Module Function | Oil cooling, filtration, pressure distribution |
| Engine Application | Sinotruk MT07, MC07 (MAN D0836 derivative platform) |
| Vehicle Application | HOWO T5G, select T7H with MC07 powerplant |
| Mounting Orientation | Head facing downward |
| Cooler Core Material | Aluminum alloy, fin-and-tube / plate-and-fin construction |
| Filter Type | Spin-on or cartridge (per application) |
| Filter Interface | Standard spin-on or cartridge mount |
| Oil Inlet/Outlet | Integrated flanged ports with O-ring seals |
| Coolant Inlet/Outlet | Hose barb or quick-connect (per application) |
| Mounting Bolt Pattern | Matches MT07/MC07 cylinder block |
| Fastener Spec | M8×97 or M8×105 Grade 10.9 flange bolts (refer to service manual) |
| Gasket Material | Multi-layer steel with Viton coating / elastomer sealing beads |
| Sealing Method | Multi-layer steel gasket with elastomer sealing beads |
| Operating Oil Pressure | 3.5–6.0 bar (normal operating range) |
| Oil Temperature Range | -30°C to 140°C (140°C continuous) |
| Max Coolant Temperature | 110°C |
| Weight | 6.0 kg |
| Dimensions | Approx. 280×180×150 mm (varies by spec) |
| Finish | Natural aluminum with protective anodizing |
| Condition | Brand new, OEM replacement grade |
| Warranty | 12 months / 100,000 km |
| Part Number | Description |
|---|---|
| 080V05000-7100 | Oil Module (alternate configuration) |
| 080V05000-7200 | Oil Cooler Assembly (MC07H Euro V) |
| 082V05000-7100 | Oil Module (head facing up variant) |
| 080V05504-6105 | Oil Filter Element |
| 082V03216-0097 | M8×97 Flange Bolt (mounting hardware) |
| 082V03216-8315 | M8×105 Flange Bolt (mounting hardware) |
