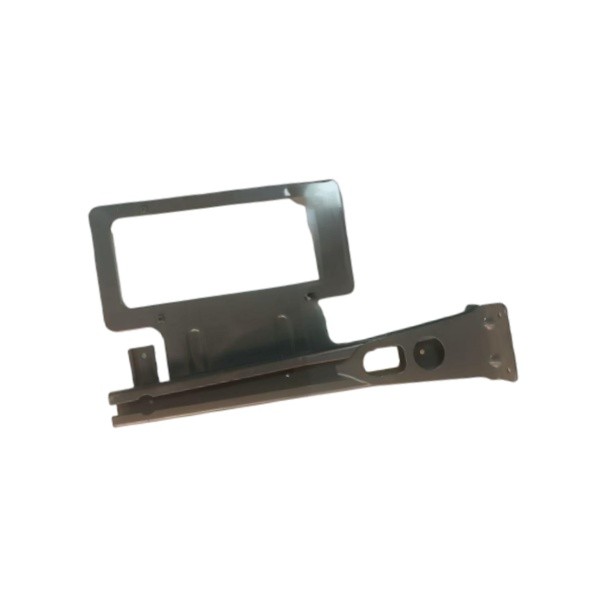

Genuine Sinotruk Tail Light Bracket (Part #AZ000094000019) for HOWOT7HT5G Truck Models

This OEM Sinotruk Tail Light Bracket (#AZ000094000019) is designed for secure mounting of rear lights on Sinotruk HOWO, T7H, and T5G trucks. Made from high-strength cold-rolled steel with anti-corrosion coating, it ensures durability in harsh environments while maintaining precise alignment for optimal lighting functionality

Technical Specifications:‌

• ‌Part Number:‌ AZ000094000019
• ‌Compatibility:‌ Sinotruk HOWO NX/TX Series, T7H, T5G, and SITRAK C7H models13
• ‌Material:‌ Grade Q235B steel (1.5mm thickness) with electro-galvanized surface treatment (Zn coating ≥12μm)
• ‌Weight:‌ 1.2kg
• ‌Mounting Holes:‌ 4x Ø8mm precision-drilled holes (tolerance ±0.1mm)
• ‌Certification:‌ ISO 9001, Sinotruk OEM standards34
• ‌Warranty:‌ 2-year corrosion resistance guarantee

‌Installation Guidelines:‌

1. Clean mounting surface with alcohol-based solvent before installation2.
2. Use torque wrench (recommended torque: 8-10 Nm) to fasten M6 bolts in cross-sequence pattern.
3. Verify light alignment using laser level (max. deviation: ≤1.5mm)
