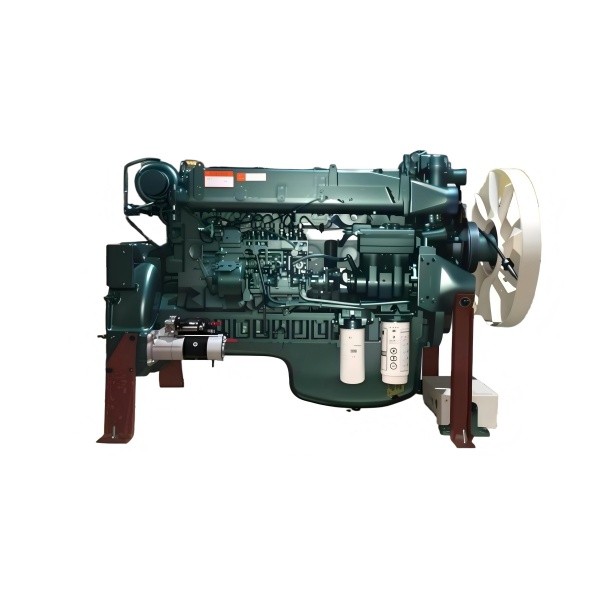

Genuine Sinotruk HOWO WD615.47 Diesel Engine Assembly (371HP/420HP)
Technical Specifications
-
Engine Model: Sinotruk WD615.47 (Euro II/III)
-
Type: 6-Cylinder in-line, 4-stroke, water-cooled, turbocharged & intercooled.
-
Rated Power: 273 kW / 371 HP (Available up to 420 HP)
-
Max Torque: 1500 Nm at 1100–1600 rpm
-
Displacement: 9.726 Liters
-
Bore x Stroke: 126mm x 130mm
-
Compression Ratio: 17:1
-
Fuel System: Direct Injection Mechanical Pump (or Common Rail for Euro IV/V)
-
Net Weight: 850kg
To ensure the longevity of your Sinotruk engine and maintain your warranty, please follow these technical guidelines:
Pre-Installation Flush: Before mounting the engine, ensure the vehicle’s radiator and intercooler are thoroughly cleaned to prevent old debris from entering the new system.
Oil Priming: Fill the oil filter and prime the lubrication system before the first start. Use only high-grade CF-4 or CH-4 15W-40 diesel engine oil.
Coolant Check: Use a 50/50 glycol-based coolant mix. Never use plain water, as it leads to internal corrosion and scale buildup in the liners.
Break-in Period: For the first 2,000 km, avoid running the engine at maximum RPM for extended periods. Allow the piston rings to seat properly by varying speeds.
Turbocharger Care: After a long haul, let the engine idle for 3–5 minutes before shutting it down. This prevents "oil coking" in the turbocharger bearings.
