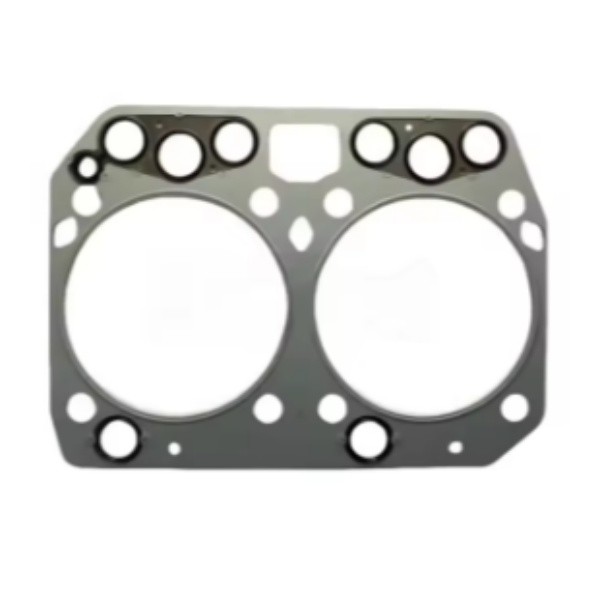

Sinotruk HOWO Genuine Cylinder Head Gasket 080V03901-0378

Sinotruk HOWO Genuine Cylinder Head Gasket 080V03901-0378 – High-Temperature Resistance & OEM Quality
Technical Specifications:

Material: Multi-layer steel (MLS) with elastomer coating
Compatibility: Sinotruk HOWO D10/D12/WD615/WP10/WP12 engines
Thickness: 1.5mm ±0.05mm
Pressure Resistance: Up to 3000 psi
Temperature Range: -40°C to +300°C
OEM Part Number: 080V03901-0378
Warranty: 12 months or 50,000 km

Installation Steps:
Clean the cylinder head and engine block surfaces thoroughly to remove old gasket residue.
Align the gasket with dowel pins and ensure no folds or misplacement.
Torque bolts in a crisscross pattern to 90-100 Nm (refer to engine manual).
Re-torque after initial engine warm-up (15-20 minutes of operation).
Caution: Avoid using sealants unless specified by OEM. Inspect for leaks post-installation.
