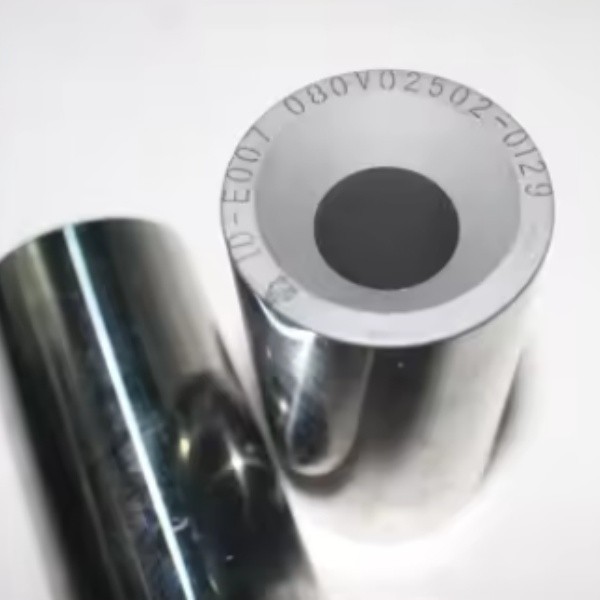

Sinotruk 080V02502-0129 Piston Pin

Premium-Quality Piston Pin 080V02502-0129 – Built for Heavy-Duty Performance

Maximize engine reliability and power transfer with the Sinotruk 080V02502-0129 Piston Pin, a critical component in the connecting rod and piston assembly of Sinotruk HOWO trucks equipped with Weichai WD615 series engines. As a professional supplier of Sinotruk spare parts, we offer OEM-spec piston pins engineered for high load resistance, wear durability, and long service life under extreme operating conditions.

Specification

Part Number 080V02502-0129
Description Piston Pin (Wrist Pin) – Full Floating Type
Compatible Engine Weichai WD615.69, WD615.77, WD615.78
Compatible Models Sinotruk HOWO T5G, T7H, A7, HOHAN, ST19, ST25
Material 20CrMo / 20MnMoH Alloy Steel (Carburizing Grade)
Heat Treatment Carburized & Hardened Surface (HRC 58–63)
Outer Diameter Φ40 ± 0.003 mm
Length 138 mm (±0.1 mm)
Surface Finish Precision Ground & Polished
Fatigue Strength High – Designed for Continuous Load Cycles
Standard Meets Sinotruk OEM Drawing & QC/TJ 5204-2012

Simple Installation Tip:
When installing the 080V02502-0129 piston pin, ensure the small-end bushing of the connecting rod is properly reamed and lubricated. Use a hydraulic press with protective sleeves to avoid damage during insertion. Confirm free float in both piston and bushing after installation — no binding allowed.
