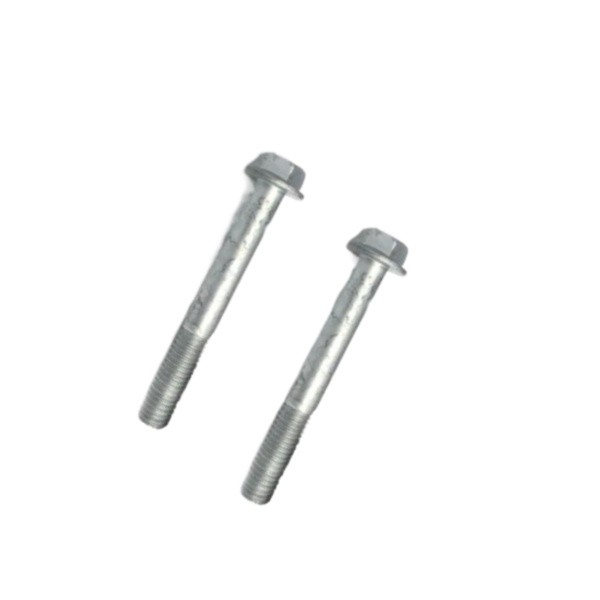

Sinotruk HOWO Hexagon Flange Bolt 082V03216-0157 – High-Strength M14x1.5 for Engine & Chassis

Product Description: Sinotruk HOWO Hexagon Flange Bolt (Part No. 082V03216-0157)

Ensure maximum clamping force and vibration resistance with this high-strength Hexagon Flange Bolt (082V03216-0157) — an OEM-equivalent fastener designed specifically for Sinotruk HOWO A7, T5G, T7H, Sitrak C7H/C9H, and other CNHTC heavy-duty trucks.

This all-in-one flange bolt integrates a washer-faced collar beneath the head to prevent loosening under constant road vibrations, making it ideal for critical engine, transmission, suspension, and chassis mounting applications.

Manufactured from quenched and tempered alloy steel (Grade 10.9) , this bolt delivers superior tensile strength, fatigue resistance, and durability in extreme operating conditions. The precision-threaded M14x1.5 design ensures smooth engagement and secure fitment without cross-threading.

Common installation locations include:

• Cylinder head covers

• Gearbox mounting brackets

• Axle assemblies

• Radiator support frames

• Cab mounting points

Each bolt is rigorously tested for dimensional accuracy, torque performance, and anti-corrosion protection — meeting CNHTC quality standards and ISO9001 certification. Whether you're repairing a single component or maintaining a full fleet, this genuine-specification flange bolt provides reliable, long-lasting performance and peace of mind.

Technical Specifications

Part Number 082V03216-0157

OEM Equivalent WG22032160157

Application Sinotruk HOWO A7, T5G, T7H, Sitrak C7H/C9H

Type Hexagon Head Flange Bolt (Integrated Washer)

Thread Size M14 x 1.5 mm

Total Length 157 mm (Fully Threaded Shank: ~60mm)

Head Diameter 24.5 mm (Flange OD)

Head Height 9.8 mm

Material Alloy Steel (SCM435 or equivalent)

Strength Grade 10.9 (Tensile Strength: ≥1040 MPa)

Surface Treatment Zinc Plating (Blue Passivated, 72h Salt Spray Tested)

Torque Spec (Recommended) 180–200 Nm (with clean, dry threads)

Function Structural Fastening – Engine, Chassis, Transmission

Certification ISO9001, CNHTC Standard  Condition 100% New, Factory Sealed

Warranty 12 Months Against Manufacturing Defects

Origin China (CNHTC Authorized Production Line)

Packaging Bulk packed in anti-rust bag + export carton (MOQ: 100 pcs)

How to Install Flange Bolt 082V03216-0157:

1. Clean Threads: Remove dirt, rust, or old thread locker from both bolt and mating hole.

2. Inspect Hole Condition: Ensure no stripped or deformed threads in tapped holes; re-tap if necessary.

3. Apply Proper Lubrication: Use light oil or assembly paste on threads — never use grease on high-torque structural bolts unless specified.

4. Hand-Tighten First: Start by hand to avoid cross-threading.

5. Use Correct Tool: Apply a 19mm socket wrench or impact gun with calibrated torque setting.

 6. Torque Gradually: Tighten in stages (e.g., 50% → 75% → 100%) to ensure even load distribution. ◦ Final Torque: 180–200 Nm

7. Check Alignment: Ensure flange seats flat against surface; no tilting or gap.

8. Avoid Reuse: Do not reuse stretch bolts or those showing signs of plastic deformation.

9. Mark After Installation: Use paint marker to indicate completion and check for movement during maintenance.

10. Follow Sequence: When installing multiple bolts (e.g., cover plates), tighten in crisscross pattern.
