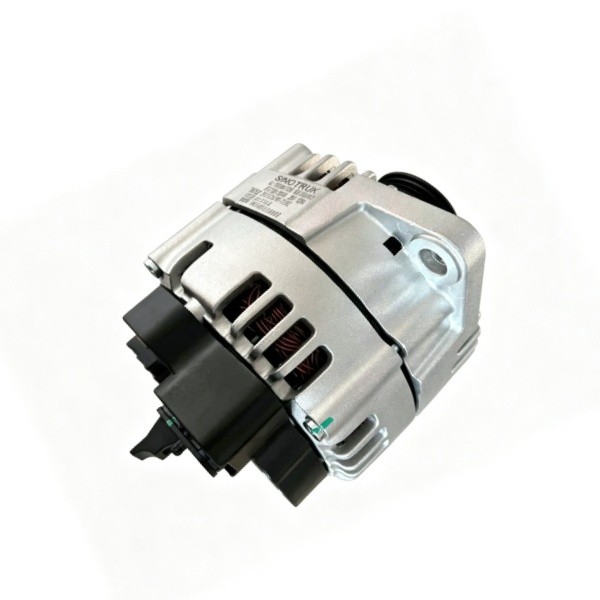

The 202V26101-7282 NX440 Alternator Assembly is a genuine-grade replacement unit built specifically for Sinotruk's heavy-duty truck lineup. If you're running a HOWO A7, T7H, or C7H and your dashboard battery light just came on, this is the part you need.
| Specification | Detail |
| OEM Part Number | 202V26101-7282 |
| Model Designation | NX440 |
| Rated Output | 28V / 440A (peak) |
| Operating Voltage Range | 24V–32V DC |
| Pulley Type | 8-groove serpentine, 70mm diameter |
| Rotation | Clockwise (viewed from pulley side) |
| Regulator Type | Internal, electronic, temperature-compensated |
| Stator Winding | Copper, Class H insulation (180°C) |
| Bearing Type | Double-sealed ball bearings, maintenance-free |
| Mounting Configuration | Dual-foot, SAE J180 standard |
| Operating Temperature | -40°C to +125°C |
| Protection Rating | IP56 (dust and water jet resistant) |
| Weight (net) | 18.5 kg |
| Dimensions (L × W × H) | 310mm × 220mm × 220mm |
| Compatible Engines | MC11, MC13, D12, WD615 (Sinotruk series) |
| Compatible Truck Models | HOWO A7, T7H, C7H, SITRAK C7H |
