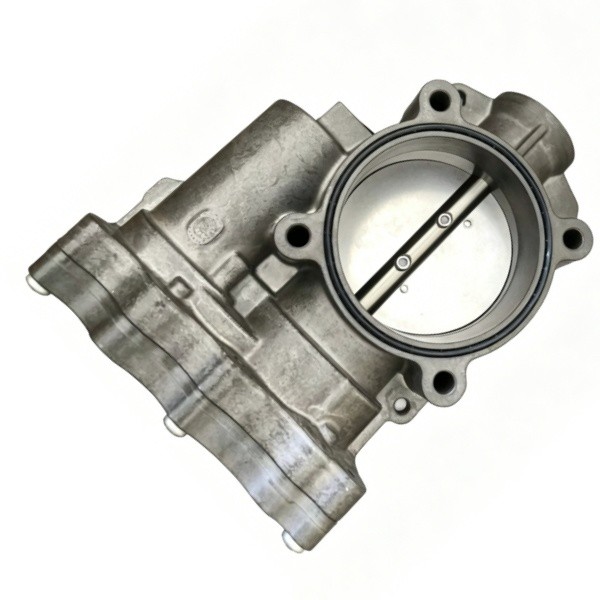

Genuine SINOTRUK MAN Engine Electronic Throttle Body 202V13200-7003 76mm EControls Throttle Valve Assembly for MC11 MC13 MT13 Euro 6 Heavy Duty Trucks

Product Item : 202V13200-7003
Category： Sinotruk Engine Parts
Sinotruk spare parts
Sinotruk howo parts
sinotruk parts
howo truck parts
INQUIRY EMAIL

The202V13200-7003 Electronic Throttle Bodyis a genuine OEM-grade component engineered specifically for SINOTRUK heavy-duty trucks equipped with MAN-derived engines. This 76mm electronically controlled throttle valve regulates incoming air flow with precision, ensuring optimal air-fuel mixture across all load conditions — from low-RPM idling to full-throttle highway cruising.

Specification	Details
OEM Part Number	202V13200-7003
Alternative / Superseded	202V13200-7005
Product Type	Electronic Throttle Body / Throttle Control Valve
Bore Diameter	76 mm
Control Technology	EControls electronic actuator with integrated TPS
Voltage	24V DC (truck electrical system)
Operating Temperature Range	-40°C to +120°C
Material	Die-cast aluminum alloy body, stainless steel throttle plate
Seal Type	Integrated silicone gasket (included)
Connector Type	6-pin sealed automotive connector
Weight	Approx. 2.0 kg (4.4 lbs)
Dimensions (L×W×H)	201 × 61 × 160 mm (package size)

What You Get in the Box

1 × Electronic Throttle Body Assembly (202V13200-7003)
1 × Pre-installed Intake Manifold Gasket
1 × Installation Guide (printed, English)
1 × Calibration Reference Card
Secure export-grade foam packaging

Quality Assurance

Every unit is bench-tested for throttle plate sweep range, position sensor linearity, and motor response time before leaving our facility. We do not sell "untested bulk" units. If the part does not meet OEM electrical tolerances, it does not ship — period.
