Genuine SINOTRUK HOWO Lower Connecting Rod Bush - Part No: 081V02410-0693 - Forged Steel Crankshaft Bearing Component

Authentic SINOTRUK Lower Connecting Rod Bush (081V02410-0693) for D12 series engines. Factory-direct replacement with technical documentation

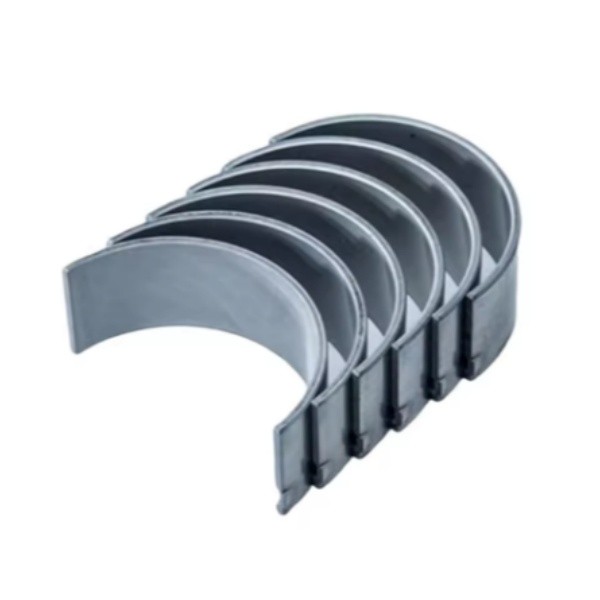

GENUINE SINOTRUK LOWER CONNECTING ROD BUSH‌
Part Number:‌ 081V02410-0693
Compatibility:‌ SINOTRUK HOWO T7H, A7 (D12/D10 Engines)

Technical Specifications:‌

Material:‌ Forged Steel 42CrMo4 + Lead-Bronze Lining
Inner Diameter:‌ 85.00±0.022mm
Outer Diameter:‌ 92.50±0.024mm
Thickness:‌ 3.25±0.03mm
Surface Treatment:‌ Phosphate coating (8-12μm)
Load Capacity:‌ 180MPa (dynamic) / 240MPa (static)
Oil Grooves:‌ 3x spiral channels (20° helix angle)
OEM Standards:‌ SINOTRUK QC/T 29034-2021
Key Features:‌
✔ Direct replacement for original worn bushings
✔ Laser-engraved part number for anti-counterfeit verification
✔ Pre-calibrated crush height (0.15-0.25mm)
✔ Optimized for 50,000-hour B10 life
✔ Includes installation alignment marks

Application:‌
Critical bearing surface between connecting rod and crankshaft in D12 diesel engines. Reduces friction and prevents crankshaft scoring under high RPM conditions.

Installation Notes‌
Step-by-Step Guide:‌

Preparation:‌
Verify replacement necessity with micrometer measurement (replace if ID >85.05mm)
Freeze new bush at -20°C for 2 hours before installation
Removal:‌
Use hydraulic press (10-12 ton force) with brass drift
Never hammer directly on bearing surface
Installation:‌
Alarge oil groove with crankshaft lubrication port (clocked at 45°)
Press fit with controlled force (max 0.05mm deformation)
Check bore roundness (max 0.01mm deviation)
Torque Sequence:‌
Connecting rod cap bolts:
Stage 1: 120Nm ±5Nm
Stage 2: Additional 60° rotation
Use new stretch bolts (single-use)
Post-Installation:‌
Prime oil system before startup
Run engine at 1500 RPM for 30 minutes (no load)
