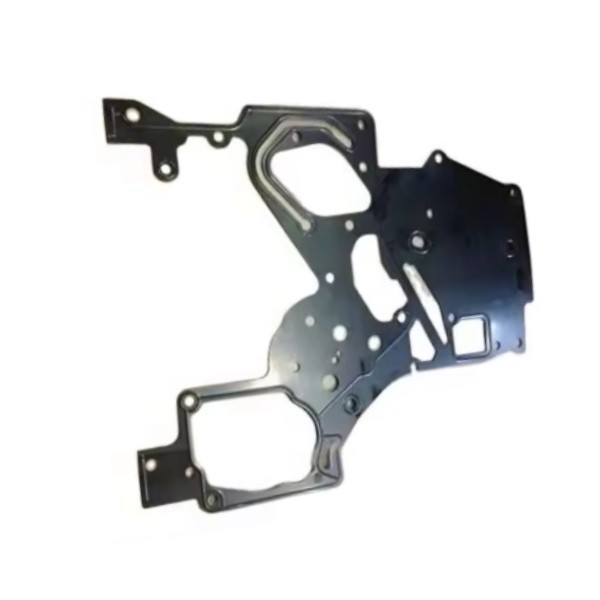

SINOTRUK Genuine Timing Gear Chamber Gasket 080V01903-0301 - High-Performance Engine Seal

The SINOTRUK Timing Gear Chamber Gasket (Part No: 080V01903-0301) is engineered for precision sealing in heavy-duty engines. Crafted from high-temperature-resistant composite materials, it prevents oil leaks and maintains optimal lubrication pressure. Compatible with SINOTRUK HOWO, STR, and T7H series, this gasket ensures durability under extreme conditions (up to 200°C).

Technical Specifications:
Material: Fiber-reinforced rubber with nitrile coating
Thickness: 1.5mm
Operating Temp: -40°C to 200°C
Pressure Tolerance: 15 MPa
Compatibility: SINOTRUK D12/D10 engines
Certification: ISO 9001, ASTM D2000

Installation Notes
Preparation: Clean the timing gear chamber surface with solvent to remove debris.
Alignment: Place gasket evenly over bolt holes; avoid stretching.
Torque Sequence: Tighten bolts in a cross pattern (25 Nm initial → 50 Nm final).
Post-Installation: Run engine at idle for 10 minutes to check for leaks.
Warning: Do not reuse old gaskets. Replace every 100,000 km.
