Sinotruk Genuine 080V01903-0333 Timing Gear Chamber Gasket - High-Temperature Sealing Solution for HOWOStark Engines

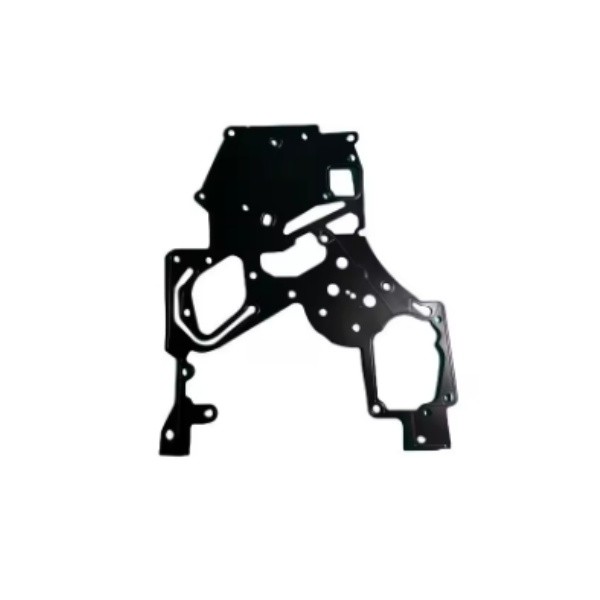

Genuine Sinotruk Timing Gear Chamber Gasket (080V01903-0333)
Engineered for precision sealing between timing gear housing and engine block in Sinotruk HOWO, T7H, and SITRAK models. Manufactured from multi-layer steel (MLS) with NBR rubber coating, this OEM gasket withstands temperatures up to 300°C and 50+ bar pressure.

Technical Specifications:
- Thickness: 1.2mm
- Material: Stainless steel core + HNBR rubber
- Compatible Models: WD615.96/WP10/WP12 engines
- Operating Range: -40°C to +300°C
- OEM Certification: GB/T 19001-2016
- Service Life: 50,000 km under standard conditions

Installation Notes
1. Clean mating surfaces thoroughly with solvent
2. Apply thin silicone sealant (Loctite 518 recommended)
3. Align gasket with dowel pins
4. Torque bolts to 22-25 Nm in crisscross pattern
5. Cure 1 hour before adding oil
Note: Replace after 50,000km or if compression loss occurs
